HRP are electrically insulated PTC Finned Resistor Heaters with high resistance to moisture and dirt for homogeneous heating of air flows
Power up to 3kW
Voltage 115V or 230V
High safety and energy efficiency thanks to the PTC effect
Insulated PTC Air Heater (HRP)
Insulated PTC Air Heaters of the HRP series are powerful heaters for homogeneous heating of air flows. They consist of slim aluminum profiles with press-fitted heating elements, and heating fins in either V or delta shape. Cover rails at both ends are equipped with a T-slot for easy installation and for attaching accessories. Thanks to their encapsulated PTC heating elements, the HRP series features a higher resistance to moisture and dirt. This allows them to fulfill high technical demands, which significantly increases their range of application - from railway applications to building air conditioning.

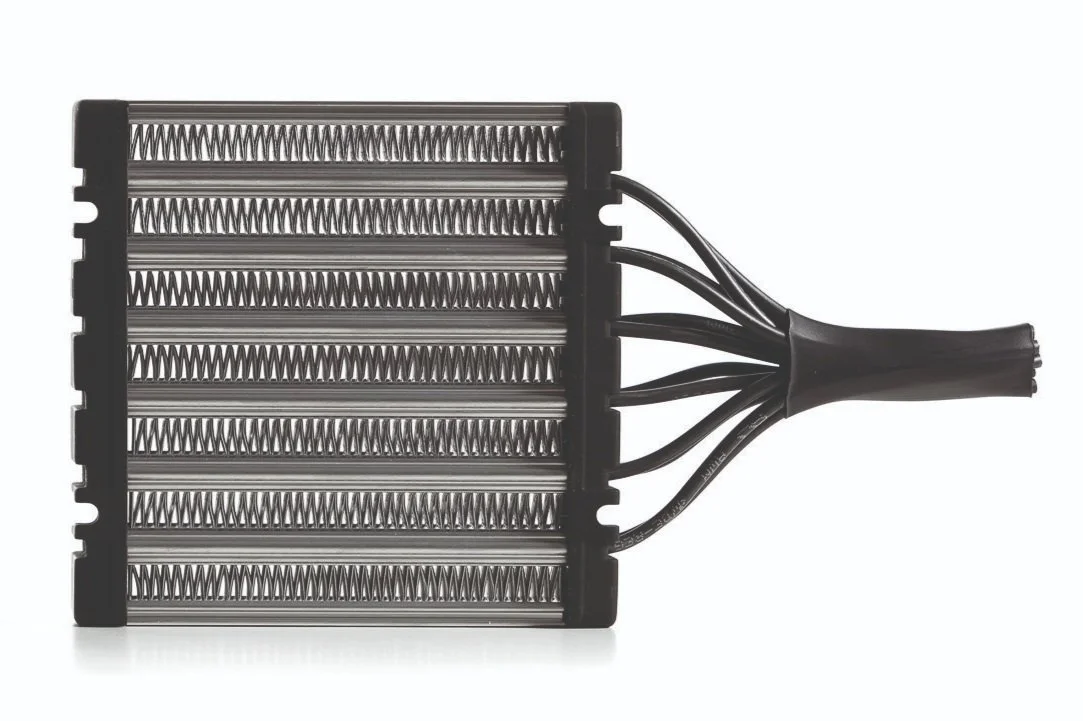

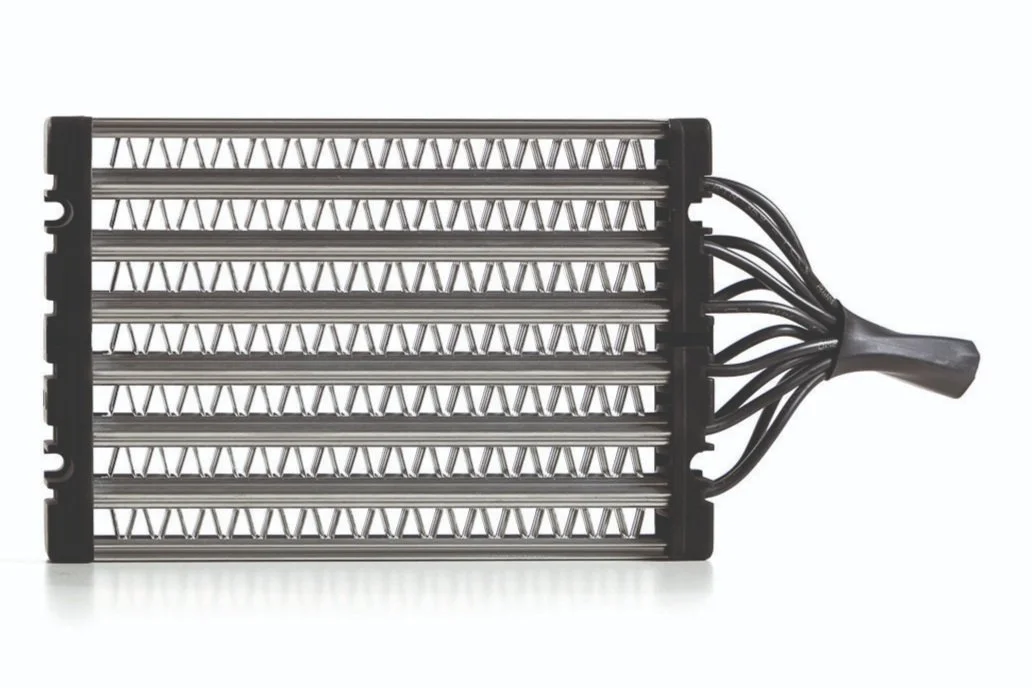

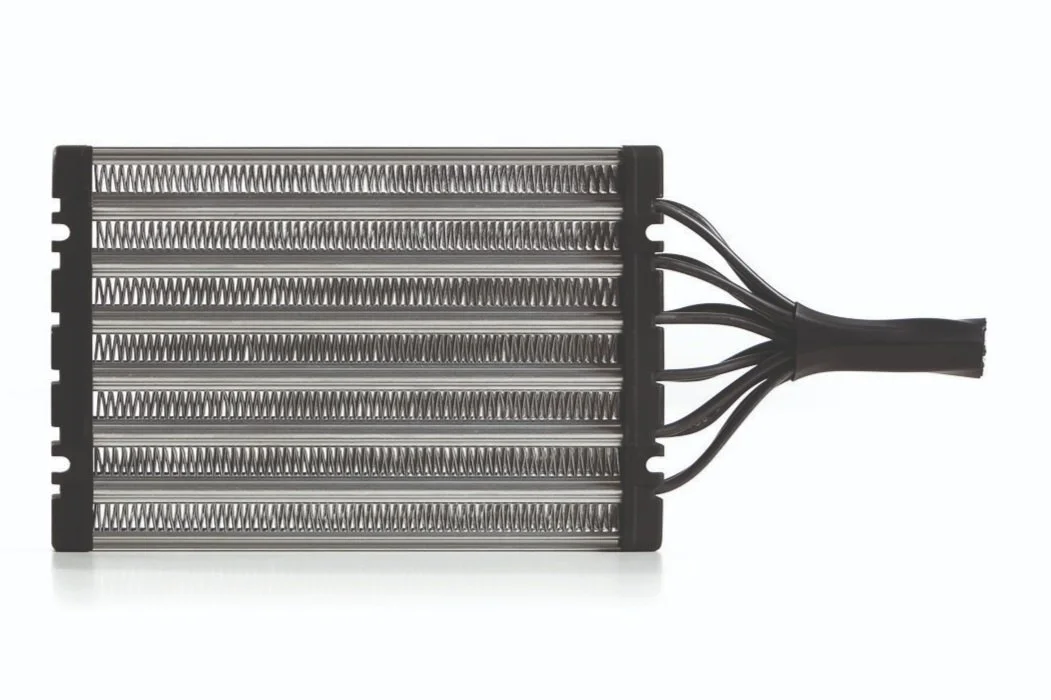

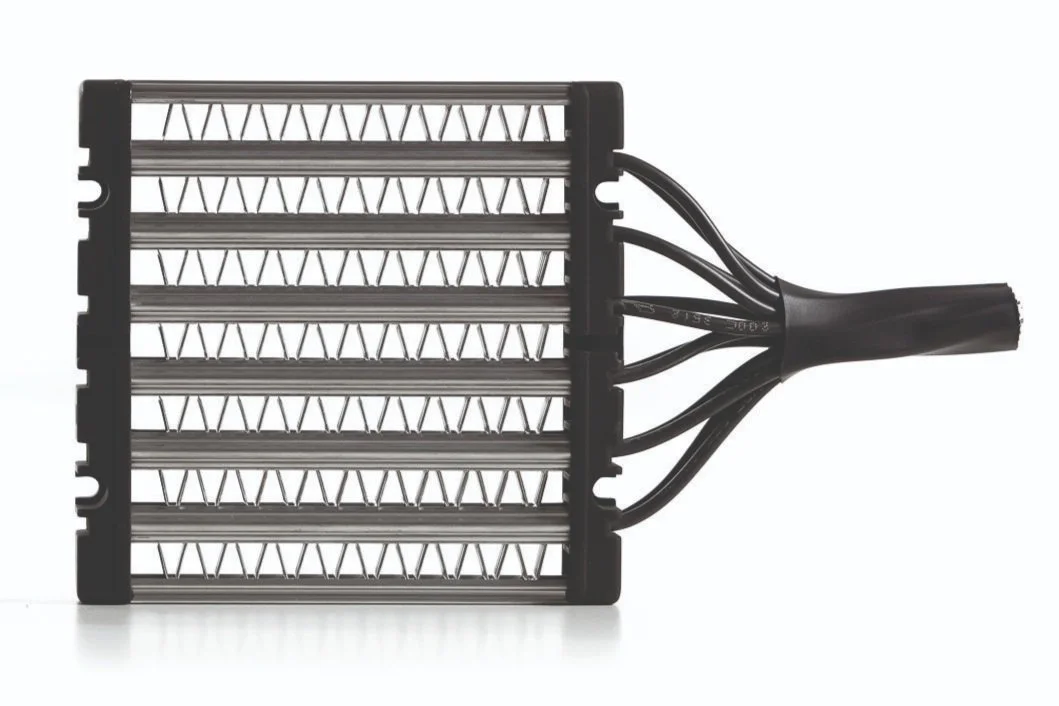

HRP are available in different versions with power outputs up to nearly 3kW. They come in three standard sizes (S, M, L) with either V- or delta-shaped fins. HRPs with delta fins achieve a considerably lower pressure drop with a minimally reduced power output and are particularly suitable for high-volume air flows or lower-performance fans. Insulated air heaters can be operated at a voltage of 115V OR 230V.
PTC Air Heaters come with all advantages of the PTC heating technology. Thanks to the PTC effect, the heating elements dynamically adjust their power without exceeding a maximum temperature. High operational reliability and energy efficiency without any additional switching elements.
FEATURES
Power up to 3kW per heater
Suitable for a voltage of 115V or 230V, AC or DC
Power control of heating element is possible via PWM (please read user instructions)
Further voltages on request (e.g. 110V, 460V)
Electrically insulated, encapsulated heating elements
Covering rail with 4,5mm T-slot
Homogeneous load with three-phase connection
Available in the standard sizes S, M, L with V- or delta-shaped fins
Choose your 230V Heater:
Choose your 115V Heater:
Optional:
4 mounting sliders with screws:
4 mounting sliders with screws and 60°C Thermostat:
Technical data
230V Version
| Insulated PTC Air Heater | HRP S | HRP M | HRP L | HRP S | HRP M | HRP L |
|---|---|---|---|---|---|---|
| Fin shape | Delta | V | ||||
| Rated voltage AC/DC (V) | 230 | 230 | ||||
| Heating capacity 230V at 20°C & 300m³/h (W) | 790 | 1230 | 1550 | 1110 | 2000 | 2570 |
| Inrush current at 230V (A) | 7 | 14 | 18 | 6 | 12 | 19 |
| Differential pressure at 20°C, 200m³/h (Pa) | 56 | 26 | 16 | 237 | 127 | 72 |
| Length without frame (mm) | 99,6 | 153,6 | 210 | 99,6 | 153,6 | 210 |
| Length with frame (mm) | 120,6 | 174,6 | 231 | 120,6 | 174,6 | 231 |
| Width (mm) | 116 | 116 | ||||
| Heating circuits (Pcs) | 6 | 6 | ||||
| Standard wire length (mm) | 170 | 170 | ||||

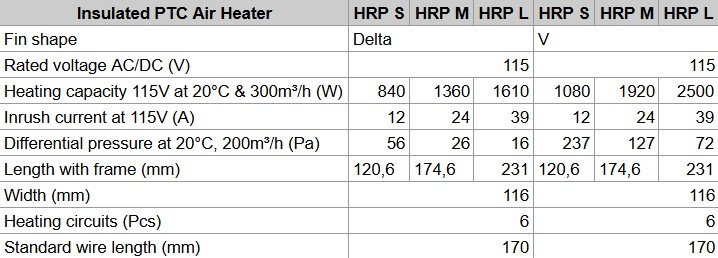

115V Version
| Insulated PTC Air Heater | HRP S | HRP M | HRP L | HRP S | HRP M | HRP L |
|---|---|---|---|---|---|---|
| Fin shape | Delta | V | ||||
| Rated voltage AC/DC (V) | 115 | 115 | ||||
| Heating capacity 115V at 20°C & 300m³/h (W) | 840 | 1360 | 1610 | 1080 | 1920 | 2500 |
| Inrush current at 115V (A) | 12 | 24 | 39 | 12 | 24 | 39 |
| Differential pressure at 20°C, 200m³/h (Pa) | 56 | 26 | 16 | 237 | 127 | 72 |
| Length without frame (mm) | 99,6 | 153,6 | 210 | 99,6 | 153,6 | 210 |
| Length with frame (mm) | 120,6 | 174,6 | 231 | 120,6 | 174,6 | 231 |
| Width (mm) | 116 | 116 | ||||
| Heating circuits (Pcs) | 6 | 6 | ||||
| Standard wire length (mm) | 170 | 170 | ||||
FURTHER SOLUTIONS
Can’t find what you’re looking for? No problem - custom solutions are our specialty! Learn more
Accessories
Plastic frame screw-on points

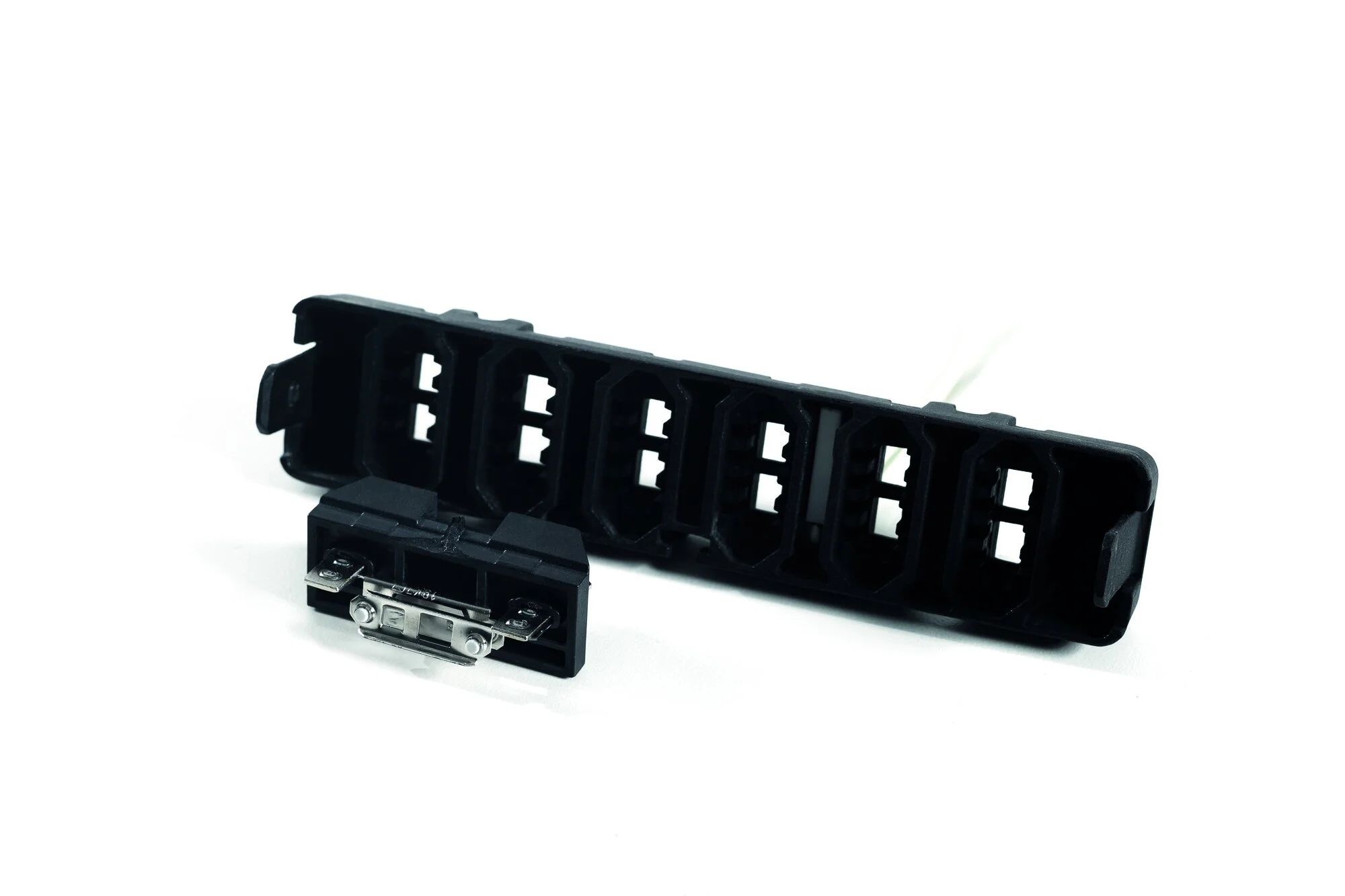

Optional plastic frame; Temperature limiter clip (for plastic frame only)
T-Slot, Mounting slider with screw-on point
Mounting slider with temperature limiter
Temperature limiter- signal transmitter (for frame or mounting slider)
Application fields
Insulated PTC Air Heaters are widely used in the railway, special-purpose vehicle and HVAC industries. The flexibly applicable heaters can be used for a wide variety of applications:
Heating of railway applications, cabin heater for special-purpose vehicles, cockpit heaters, control cabinet heaters, air dryer & dehumidifier, pre- or post-heaters for air conditioning and ventilation systems with heat recovery (low-energy houses), etc.
These products are based on a modular system and are suitable for a wide range of applications. Please always consult with our sales team to discuss your specific application - we are happy to assist!
