Typhoon 60 | PTC Fan Heater
Typhoon 60 | PTC Fan Heater
Compact PTC Fan Heater for targeted air flow to protect against moisture and frost in enclosures & electrical cabinets
Power 500W
Voltage 24V, 115/230V
High safety and energy efficiency thanks to the PTC effect
Worldwide approvals: CE, UL, CQC

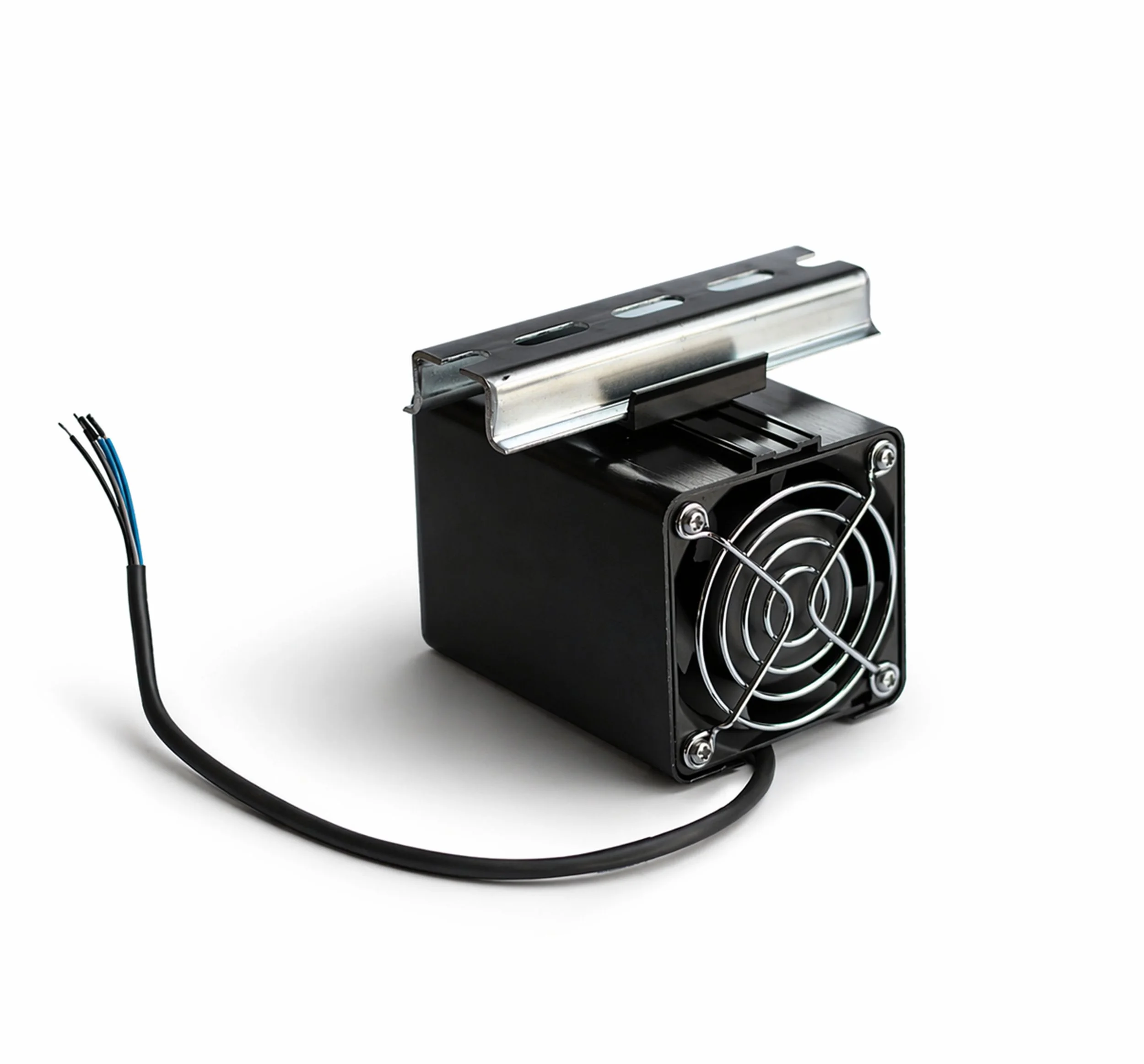

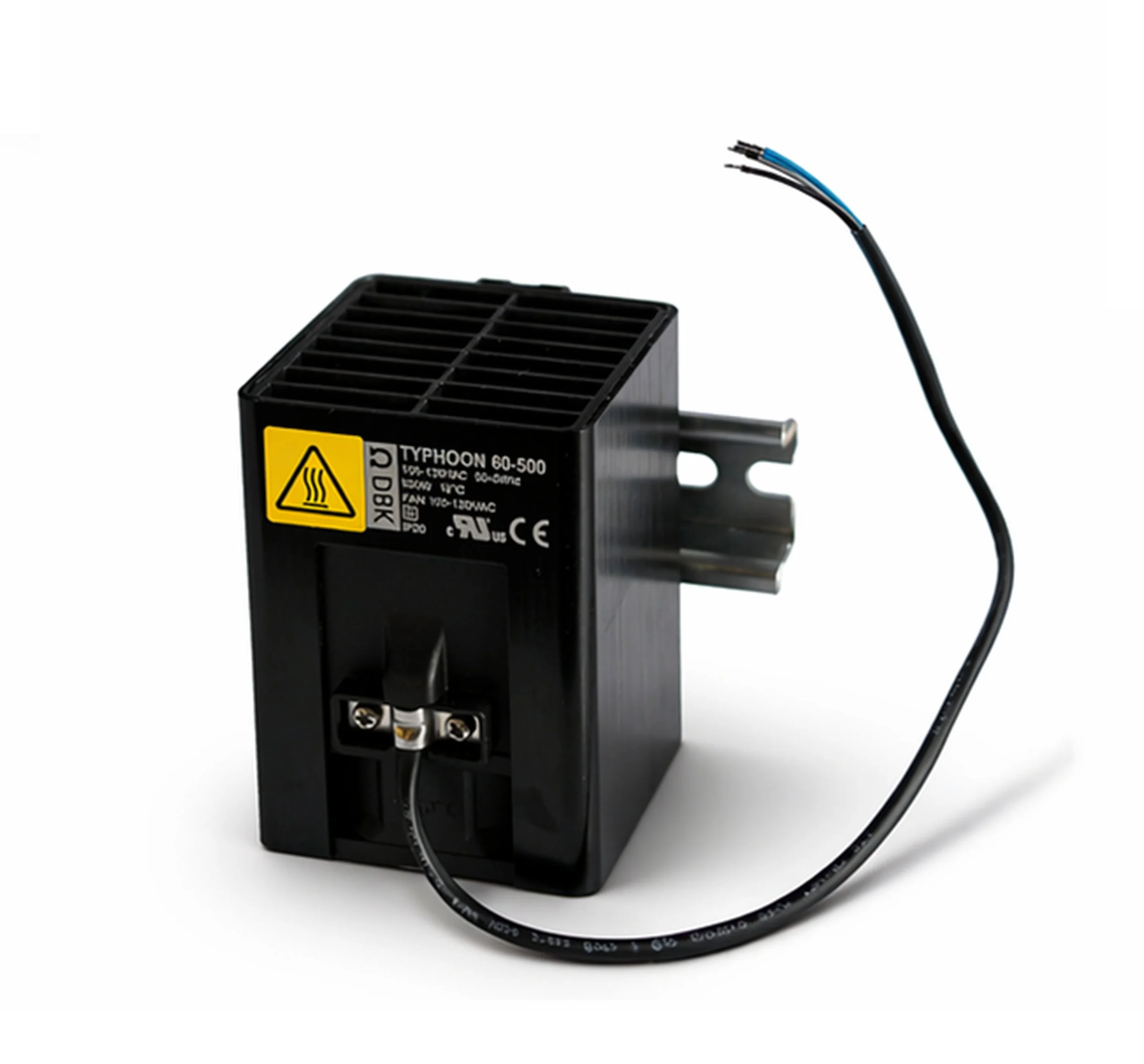

PTC Fan Heater Typhoon 60
PTC Fan Heaters of the Typhoon series are powerful heaters for targeted air heating in all kinds of electrical housings. They consist of a PTC heating element and an axial fan, installed in a compact housing made of plastic. Their DIN clip and terminal block allows for easy and space-saving integration into the customer application. PTC fan heaters are particularly often used in control cabinets, where they protect electronic components from moisture and frost.
Typhoon 60 is available in the power version of 500W. A special feature of the Typhoon 60 is the separate power supply for the fan (24V DC) and heating element (115/230V). The forced convection heater is equipped with a push in terminal and DIN clip for easy installation.
PTC Fan Heaters come with all advantages of the PTC heating technology. Thanks to the PTC effect, the heating elements dynamically adjust their power without exceeding a maximum temperature. High operational reliability and energy efficiency without any additional switching elements.
FEATURES
High power to size ratio
Power version 500W in stock, other Powers available on request
Voltage versions 115V or 230V
Stainless steel 35 mm DIN-rail mount
Build in finger guard (flush fitting)
Push In Terminal for easy connection
Lightweight

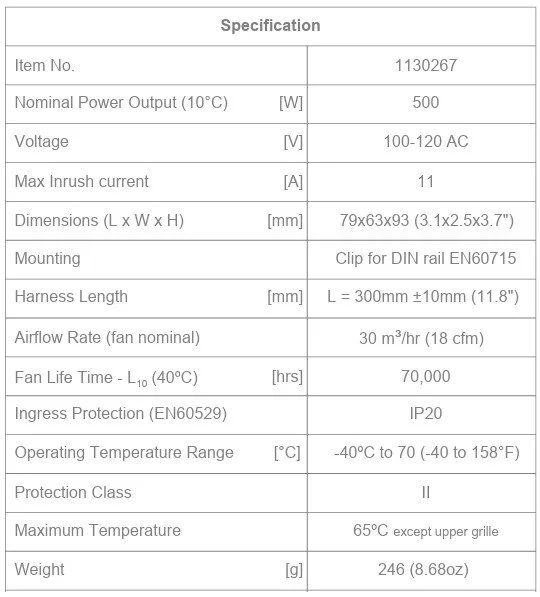

Technical data
| Typhoon 60 | ||
|---|---|---|
| Nominal Power Output at 50°F (Tolerance +/-10%) | (W) | 200 / 250 / 300 / 400 / 500 |
| Nominal input voltage Heating Element | (V) | 115 | 230 |
| Nominal input voltage Fan | (V) | 24 DC |
| Max. Body Temperature (77°F Ambient) | (°F) | 165 |
| Operating Temperature Range | (°F) | -4 to +158 |
| Storage Temperature Range | (°F) | -40 to +158 |
| Fan lifetime | -L10 at 86°F | (hrs) | 74,000 |
| Fan Volumetric Flow (approcimate, at zero static pressure) | (cfm) | 18 |

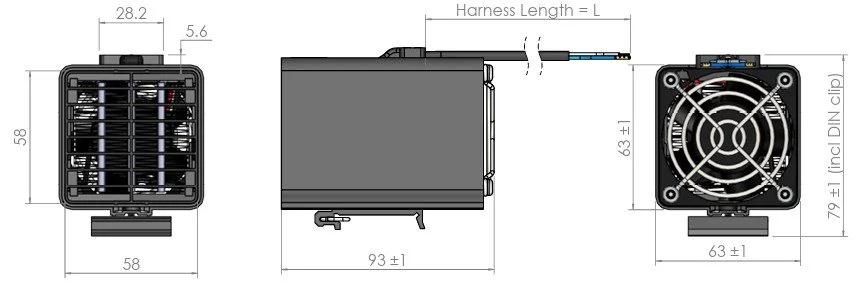

| Cross Section | (") | 2.5 x 2.5 |
| Length | (") | 3.66 |
| Weight | (oz) | 12.95 |
| Connection Type | Push In Terminal | |
| Ingress Protection (EN60529) | IP20 | |
| Electrical Protection Class | SK II | |
| Recommended Fuse (Time Delay) at 115/230 V | (A) | 4 / 4 / 6.3 / 6.3 / 8 |
Application fields
PTC Fan Heaters of the Typhoon series are widely used in the electrical cabinet, payment & access system, telecom and renewable energy industries. The flexibly applicable heaters can be used for a wide variety of applications:
Enclosure heater, heating of outdoor cabinets, CCTV, webcam heater, display heater, frost protection in ATMs / ticket machines / parking ticket machines, frost protection of mechanical components in wind turbines, heating of fuel dispensers, energy ports, etc.
