Tubular Enclosure Heater
Tubular Enclosure Heater
Tubular Heaters with thermostat for humidity control in enclosures
Power up to 500W
Voltage versions 120V, 240V
Worldwide approvals: UL
Tubular Enclosure Heater
Tubular Heaters are equipped with an integrated adjustable thermostat to provide thermal and humidity control within enclosures and electrical cabinets. The wire heater conists of a tubular heating element in a frame made of aluminized steel for durability. The housing with keyholes allows for easy mounting in the application. The thermostat can be adjusted to turn off the heater at any required set point between 30°F and 150°F.
Tubular Enclosure Heaters come in five power versions from 100W to 500W and are available in two voltage versions of 120V or 240V. All models are the identical size and construction.
FEATURES
Power up to 500W
Voltage versions of 120V or 240V
Frame made of aluminized steel for durability with keyholes for easy installation
Can be operated between 0°F and 194°F

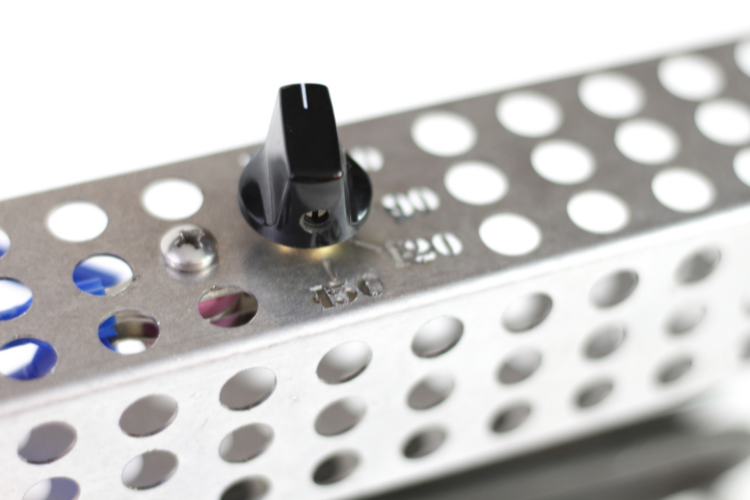

Integrated adjustable thermostat for temperature adjustments between 30°F and 150°F
Technical data
| Model No. | Power / W (+5/-10%) | Voltage / V | Current / A |
|---|---|---|---|
| TBH100202 | 100 | 120 | 0.83 |
| TBH100203 | 200 | 120 | 1.67 |
| TBH100204 | 300 | 120 | 2.5 |
| TBH100205 | 400 | 120 | 3.33 |
| TBH100206 | 500 | 120 | 4.17 |
| TBH100207 | 100 | 240 | 0.42 |
| TBH100208 | 200 | 240 | 0.83 |
| TBH100209 | 300 | 240 | 1.25 |
| TBH100210 | 400 | 240 | 1.67 |
| TBH100211 | 500 | 240 | 02.08 |
