Inline Thermostats
Inline Thermostats
£1.00
Bi-metal Thermostat for all heating elements up to 8 Ampère depending on their operating voltage e.g. Cirrus Fan Heaters, Nimbus Convection Heaters, PTC Heating Profiles, etc.
Voltage 12 - 24V, 100 - 250V
Self-assembly component
Ausverkauft

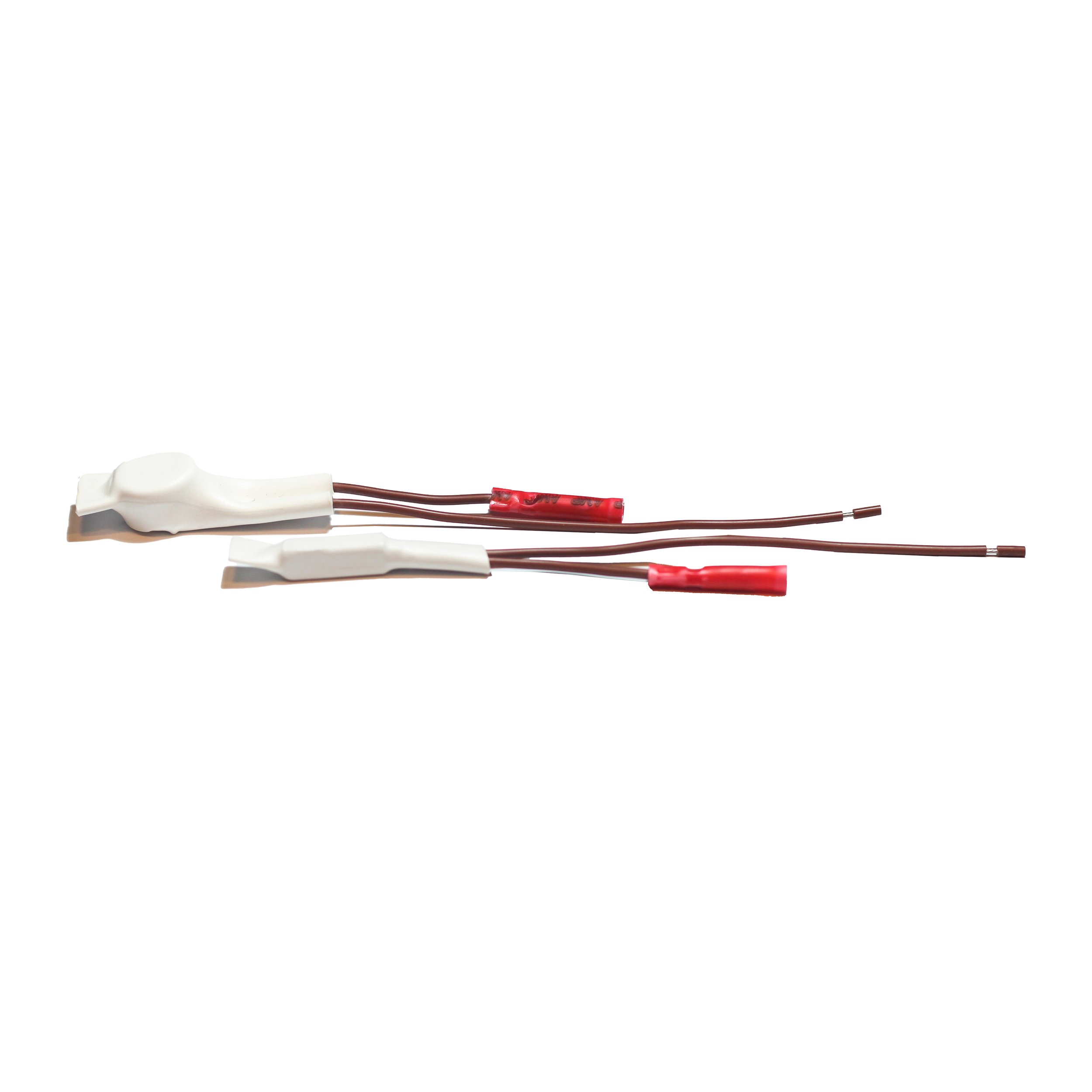

Inline Thermostat
The Inline Thermostat is suitable as a supplement for all types of heating elements up to 8 Ampère depending on their operating voltage. The small bi-metal thermostat has a fixed switching temperature and is available in six different versions as a self-assembly component.
FEATURES
Can be operated in a voltage range of 12 - 24V AC/DC or 100 - 250V AC
Reliable bi-metal technology
Normally closed contact (heating)
Pre-set switching temperature
Self-assembly component
Technical data
| Thermostat Inline | High Voltage | Low Voltage | ||||
|---|---|---|---|---|---|---|
| Switching temperature (°F) | 41 | 68 | 89.6 | 41 | 68 | 89.6 |
| Tolerance (+/-°F) | 5.4 | 5.4 | ||||
| Bi-metal action | Snap | Creep | ||||
| Hysteresis | 10 / 18 | – | ||||
| Current Rating at 250 VAC (A) | 3 | – | ||||
| Current Rating at 100 VAC (A) | 6 | – | ||||
| Current Rating at 24 VAC / DC (A) | – | 8 | ||||
| Current Rating at 12 VAC / DC (A) | – | 4 | ||||
| Voltage (V) | 100-250 | 12-24 | ||||
| Degree of enclosure protection | IP20 | IP20 | ||||
| Protection Class | I | I | ||||
| Endurance for nominal approvals (cycles) | 10,000 | 5,000 | ||||
| Crimp details (mm²) | 0.25 - 1.5 Red | 0.25 - 1.5 Red | ||||
| Dimensions WxLxH (") | 0.59 x 1.77 x 0.28 | 0.31 x 1.77 x 0.31 | ||||
| Wire length from body (") | 4.13 | 4.13 | ||||
| Wire, Silicone (awg) | 20 | 20 | ||||
