Compact PTC Contact Heater with aluminum profile for precise heating of solids or liquid containers
Multi-voltage capability at 12 - 24V or 110 – 240V
High safety and energy efficiency thanks to the PTC effect
Worldwide approvals: CE, UL
PTC Heating Profiles HP05 & HP06

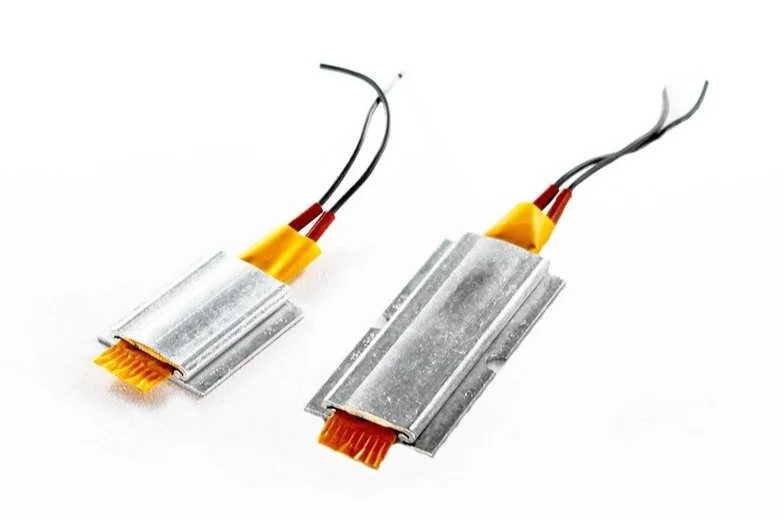

PTC Contact Heaters of the HP series are dynamic heating elements for precise heating of solids and liquid containers. They consist of a contacted PTC heating element pressed into an aluminum profile. The aluminum profile features a flat design with mounting holes on the outer profile surface which allow for easy installation and optimum heat transfer.
PTC Contact Heaters of the HP series are available in two sizes HP05 or HP06 and two voltage versions (12 - 24V or 100 - 240V) with maximum surface temperatures ranging from 104°F to 392°F.
PTC Contact Heaters come with all advantages of the PTC heating technology. Thanks to the PTC effect, the heating elements dynamically adjust their power without exceeding a maximum temperature. High operational reliability and energy efficiency without any additional switching elements.
FEATURES
Available in two sizes HP05 (1.58x1.38") or HP06 (2.95x1.38")
Surface temperatures from 104°F to 392°F
Multi-voltage capability in the range of 12 - 24V or 110 – 240V AC or DC
Further voltages on request (e.g. 24 - 48V AC or DC)
Compact heating element with high power density
Highly effective heat transfer provided by the aluminum housing
Flexible installation via outer profile surface
Technical data
| PTC Heating Profiles | HP05 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Depth max. ('') | 0.327 | ||||||||
| Mounting face L x W ('') | 1.58 x 1.38 | ||||||||
| Voltage range (V) | 12 - 24 | 100 - 240 | |||||||
| Rated surface temperature ± 18°F (°F) | 104 | 212 | 284 | 122 | 158 | 194 | 230 | 302 | 392 |
| Part no. | FG14756.1 | FG800015 | FG800071 | FG14752.0 | FG800046 | FG14754.6 | FG800005 | FG15113.5 | FG800137 |
| PTC Heating Profiles | HP06 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Depth max. ('') | 0.327 | ||||||||
| Mounting face L x W ('') | 2.95 x 1.38 | ||||||||
| Voltage range (V) | 12 - 24 | 100 - 240 | |||||||
| Rated surface temperature ± 18°F (°F) | 104 | 212 | 284 | 122 | 158 | 194 | 230 | 302 | 392 |
| Part no. | FG14762.9 | FG800014 | FG800055 | FG13550.0 | FG13560.0 | FG14760.3 | FG800016 | FG14973.2 | FG800006 |
FURTHER SOLUTIONS
Can’t find what you’re looking for? No problem - custom solutions are our specialty! Learn more
Application fields
PTC Contact Heaters of the HP series are widely used in the medical & laboratory, energy, mechanical & plant engineering and infrastructure industries. The flexibly applicable heaters can be used for a wide variety of applications:
Heating of medical equipment and measuring instruments, e.g. ultrasonic cleaning devices; heating of pumps, control valves; heating of displays, CCTV, access systems; heating of fuel dispensers, wind turbines, etc.
